Implant Motor

Surgical Implant Motor

Model: Surgic Pro+



Features:

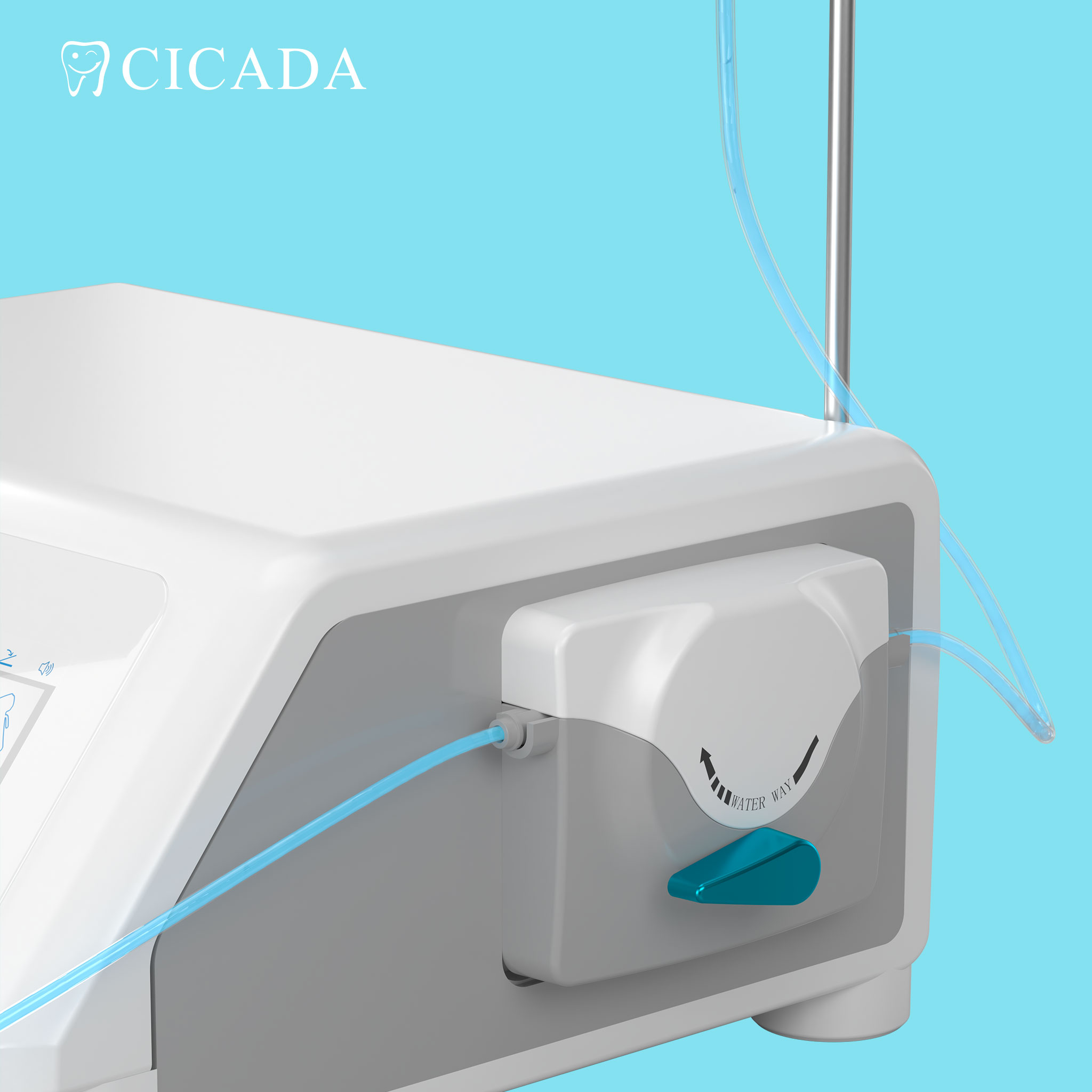

  1. Mute persitaltic pump, simple connection, be compatible with disposable oral water pipe to ensure safety of treatment.
  2. 30,000 lux brightness LED light, make surgery more accurate.
  3. Torque up to 60N.cm, adaptable to transmission ratio contra angle.
  4. A dual-channel irrigation pump delivers pulsed saline cooling at 50-150 mL/min, maintaining bone temperature below 47°C during high-speed drilling to promote faster healing.
  5. Lightweight and cordless, this machine reduces clinician fatigue during lengthy full-arch procedures while providing unrestricted access.
  6. Universal adapter fits all major implant contra angles (Straumann, Nobel, Dentsply Sirona), eliminating the need for multiple machines.
  7. Implantation mode and surgical mode in one, Implantation mode: multiple optional steps to help you create your own implantation process. Surgery mode: different options to meet all your needs.
INQUIRY





Technical Specification:

Model

Surgical Pro+

Input Power Supply

AC100-110V or AC220-240V 50/60HZ

Motor Rotation Speed Range

200rpm-40000rpm

Torque Range

400w, 80N.cm

Coolant Flow

0-80ml/min

Max Pump output (ml/min)

130

Light

White LED

Luminance (lux)

Over 32,000

Stored Programs

Implant/ Surgery 2 in 1





Control unit

Input power

AC 220V 50HZ

Consumption power

120VA

Water pump output

0ml/min-120ml/min

Fuse

F3AL 250V

Size

285*265*155mm





Operation conditions:

Storage Condition: Temperature: -10℃-50℃

Humidity: <80%

Atmospheric pressure: 50KPa-106Kpa

Environment Conditions: Not near from fire equipment or flammability material.

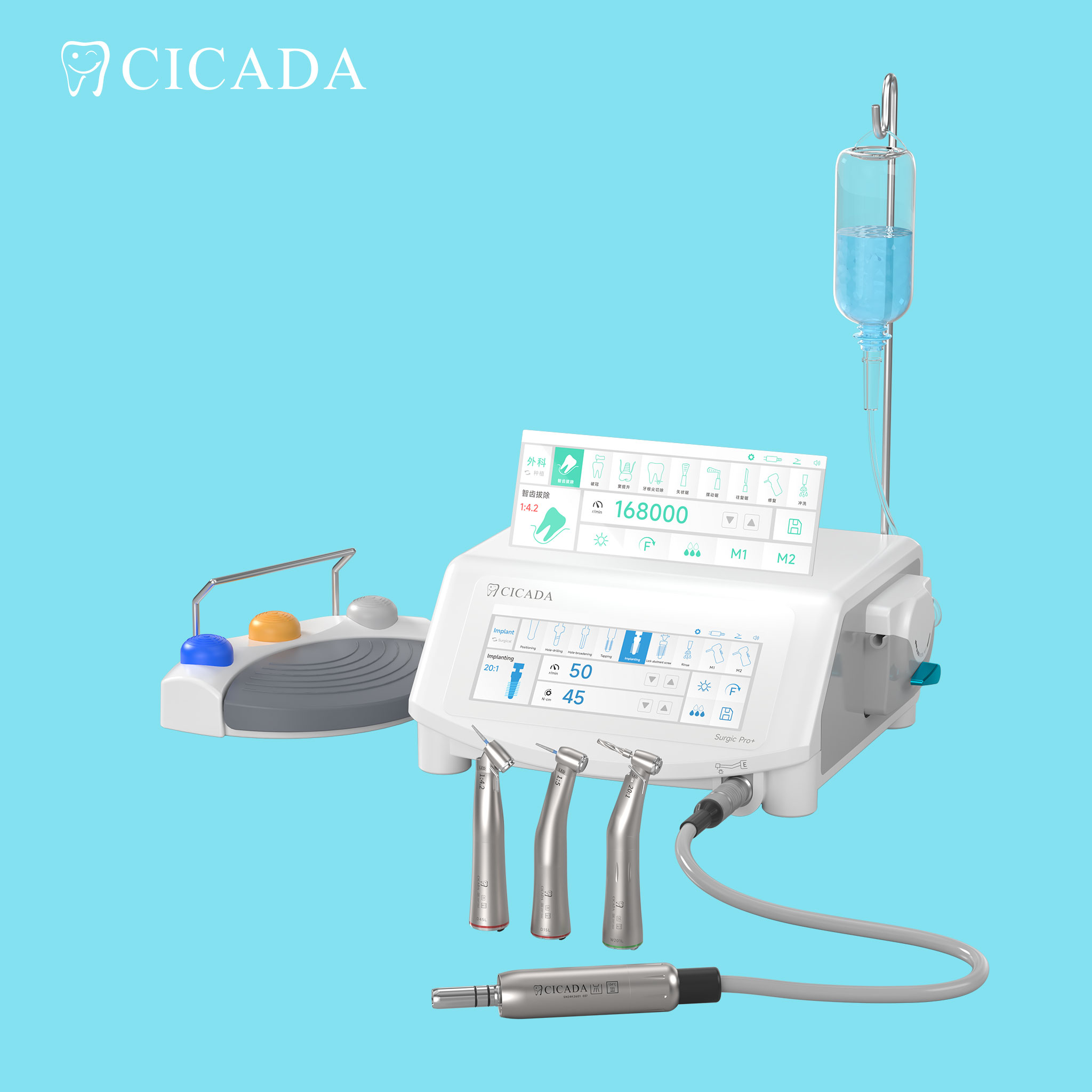

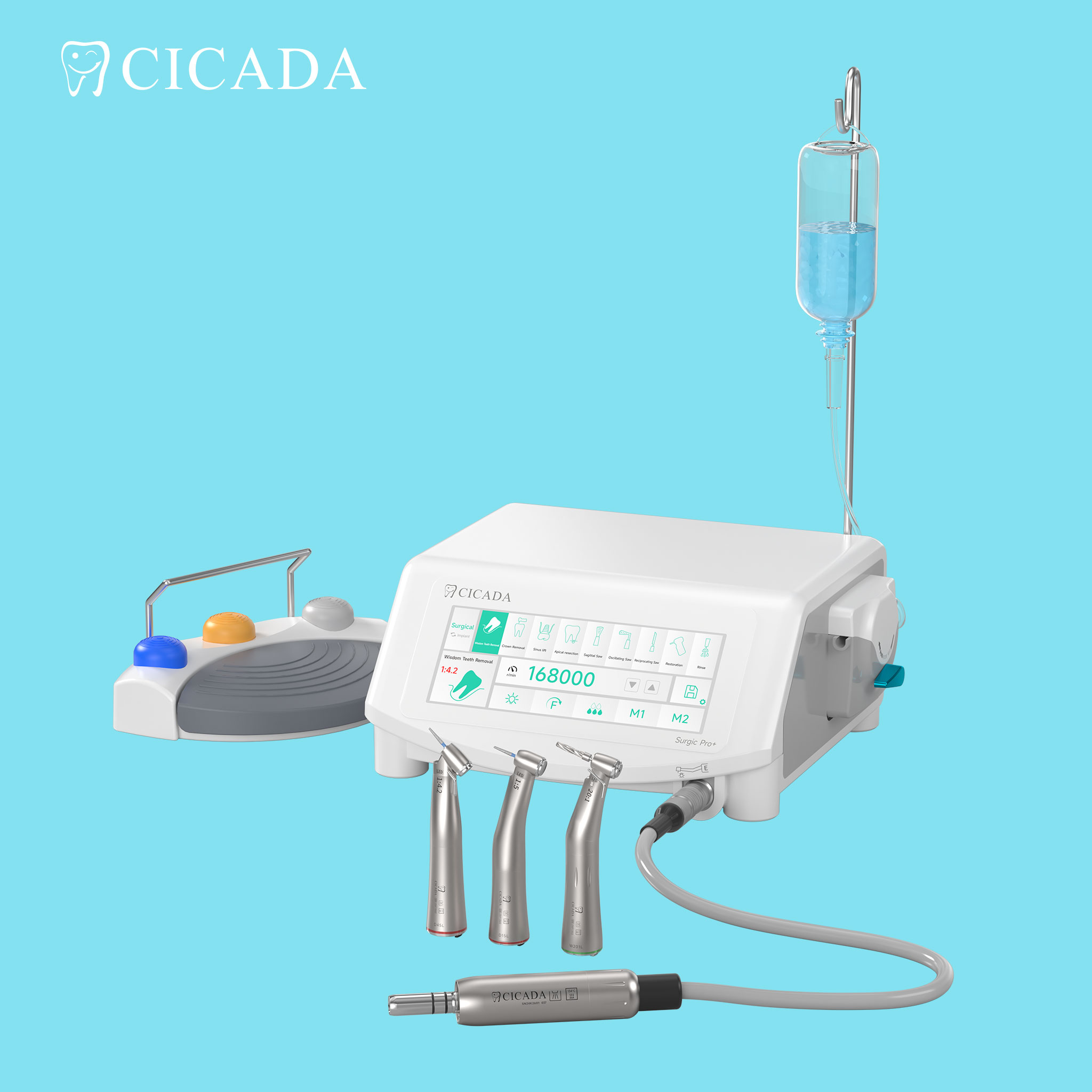

Accessories:

Control unit

1

Foot pedal

1

Power cable

1

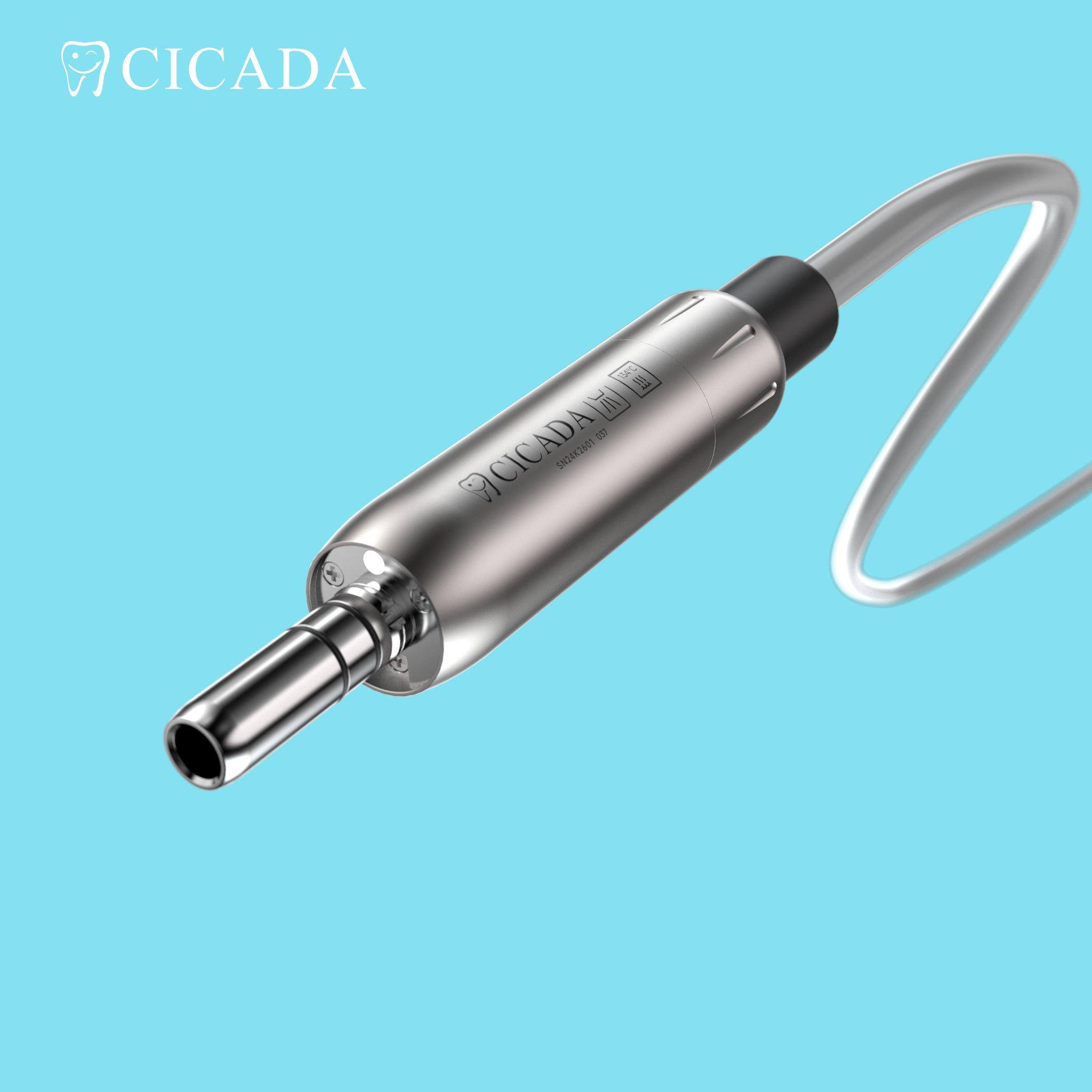

Motor (with cable)

1

Water bottle

1

Motor bracket

1

Pipeline snap ring

8

Y type shunt tube

1

Internal channel nozzle

1

Fuse

1

Steam plug

1

Water supply pipe

1

Bending head nozzle

1

instructions for use

1
