Electric Motor

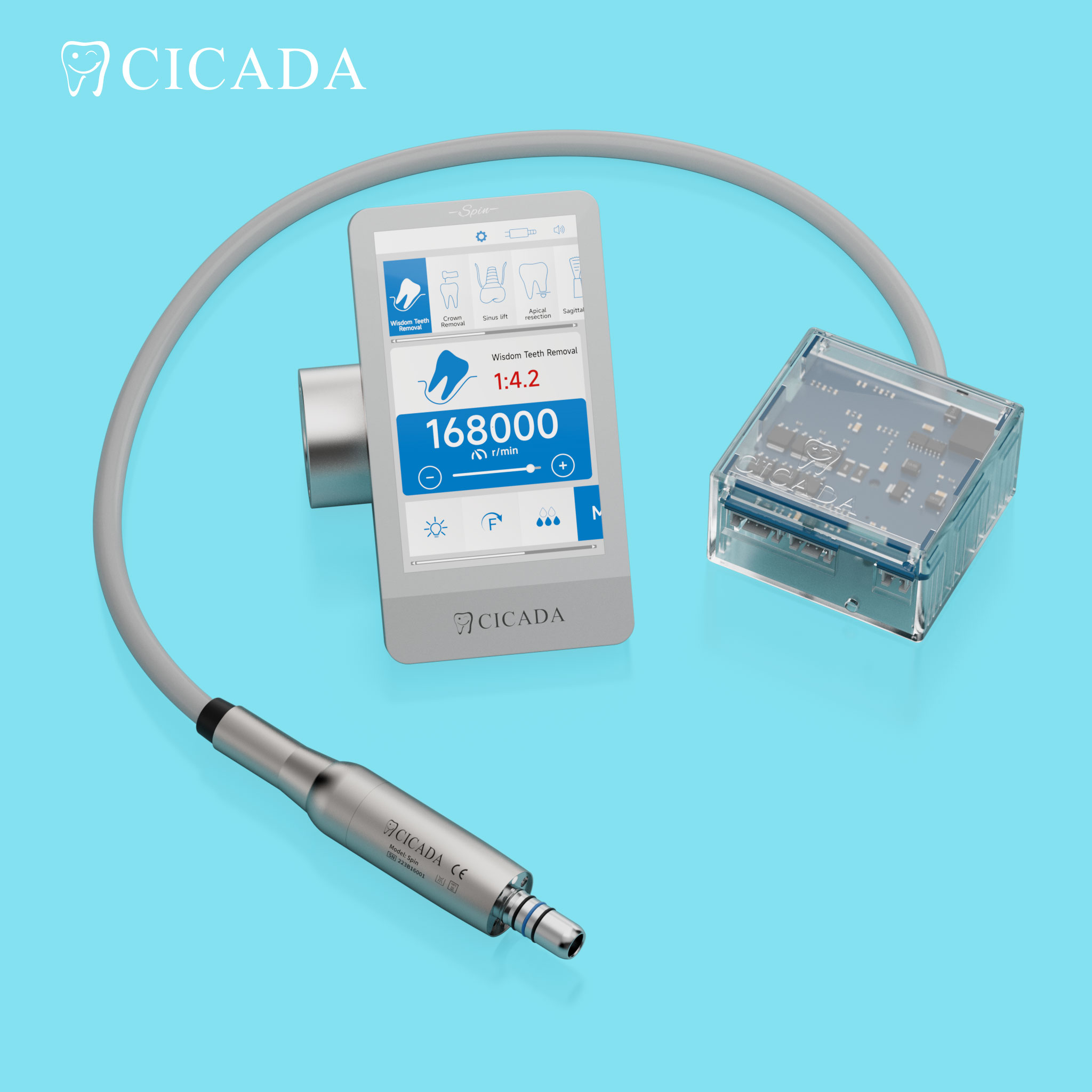

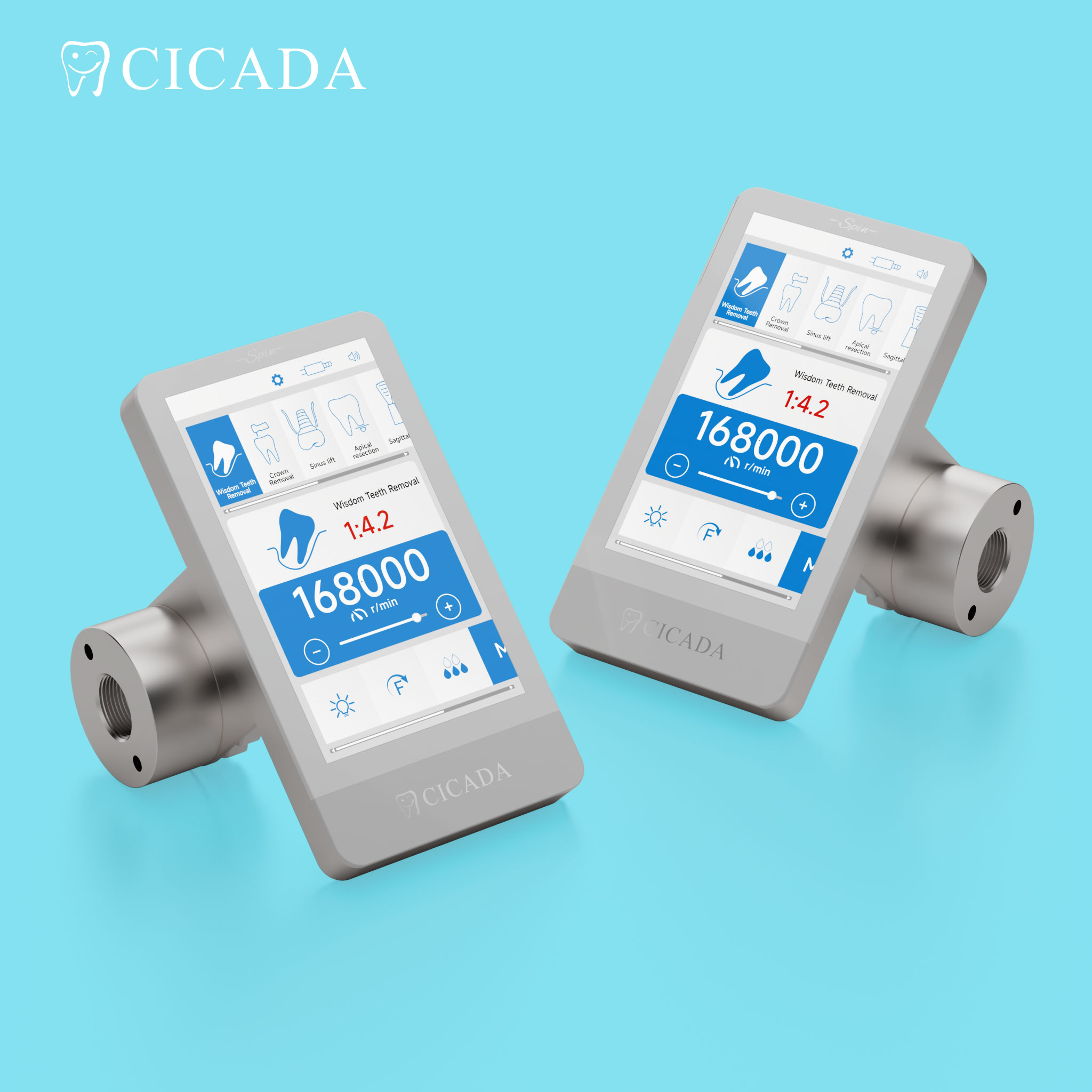

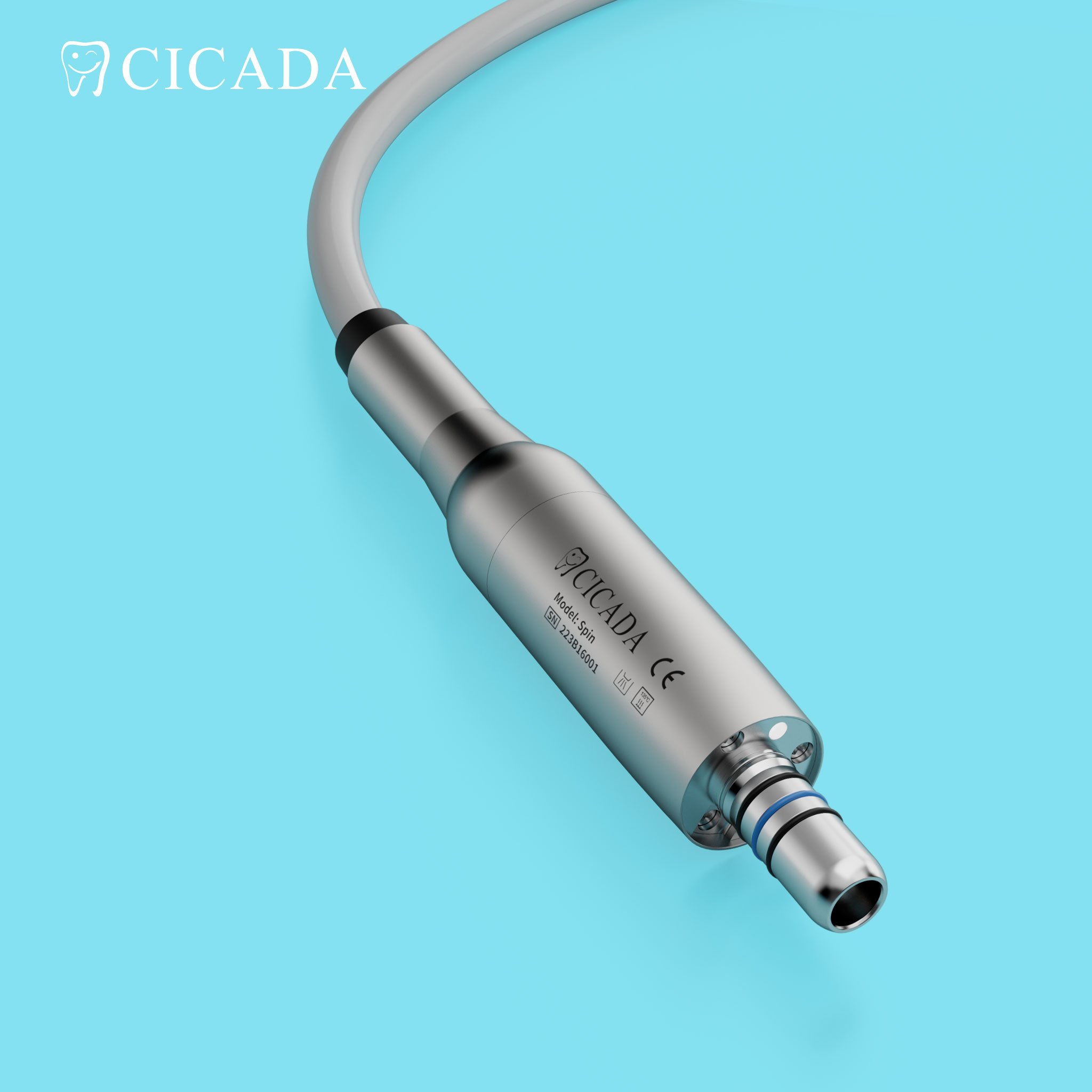

Touch Screen Built-in Electric Micro Motor

Model: NL 400-1(Remark:Spin)

Features:

* perfect balance of performance and ergonomics;

* It is particularly small and surprisingly light;

*Consistent high power and torque;

* long service life and quiet operation - less noise and more comfort for patient;

* LED Technology for optimal visualization;

* easy to understand LCD screen with all functions visible and easy to change;

* 16:1, 1:1, 1:4.2 and 1:5 speed ratio available.

INQUIRY

Specification:

Motor type

Direct current brushless motor

Operation mode

FWD/REV

Speed of motor

100-40,000 rpm

Torque

3.0N·cm

Coolant gas

6-8 NL/min(0.2MPa)

Sterilization

121℃ for 20 minutes,or 135℃ for 12minutes

Noise

≤60dB



Water/Air supply:

Water supply

Above 65 ml/min(0.2MPa)

Air supply

Above 1.5 L/min(0.2MPa)

Cool hydraulic pressure

0.2MPa
