Curing Light

LED Curing Light

Model: CV-215(G4)

Key Features:

Inductive boot, more intelligent

Large screen size, easy to work and watch

Product 4-core lamp beads, Illumination angle 95°

Wide-spectrum wavelength coverage, curing 99% of resins on the market

Brilliant colors, fashionable styles, prevent aesthetic fatigue

5 special magnetic lenses:

1.Spot curing lens

2.Check the diagnostic lens

3.Near-cured ball lens

4.Check the diagnostic lens

5.Root canal guiding lens

.Used for whitening veneer/ Orthodontic Bonding/ Whitening repair/ Root canal repair


Technical Specification:

Model: CV-215(G4)

Light power:10W with 4 bulb

Wavelength: 385-515nm

Battery: Rechargeable lithium ion battery

Battery capacity: 1200mAh

Input voltage: AC100-240V, 50-60Hz 0.4A Max

Output voltage: DC 5.0V/1.5A

Net Weight: 327g

Warranty: 1 year

Light power: 800-2500mw/cm²

Material: stainless steel

Solidification time: 1s 2s 3s 5s 6s 9s 10s 15s 20s 30s 60s

Operation conditions:

Storage condition: Temperature: -10℃~+55℃

Humidity: 10~93%

Atmospheric pressure: 50KPa-106Kpa

Environment conditions: Not near from fire equipment or flammability material.



Curing light main unit 1PC

Charging base  1PC

Adapter 1PC

Eye shield  1PC

Light guide 1PC

Usage Manual  1PC

Disposable sleeve*100 PCS

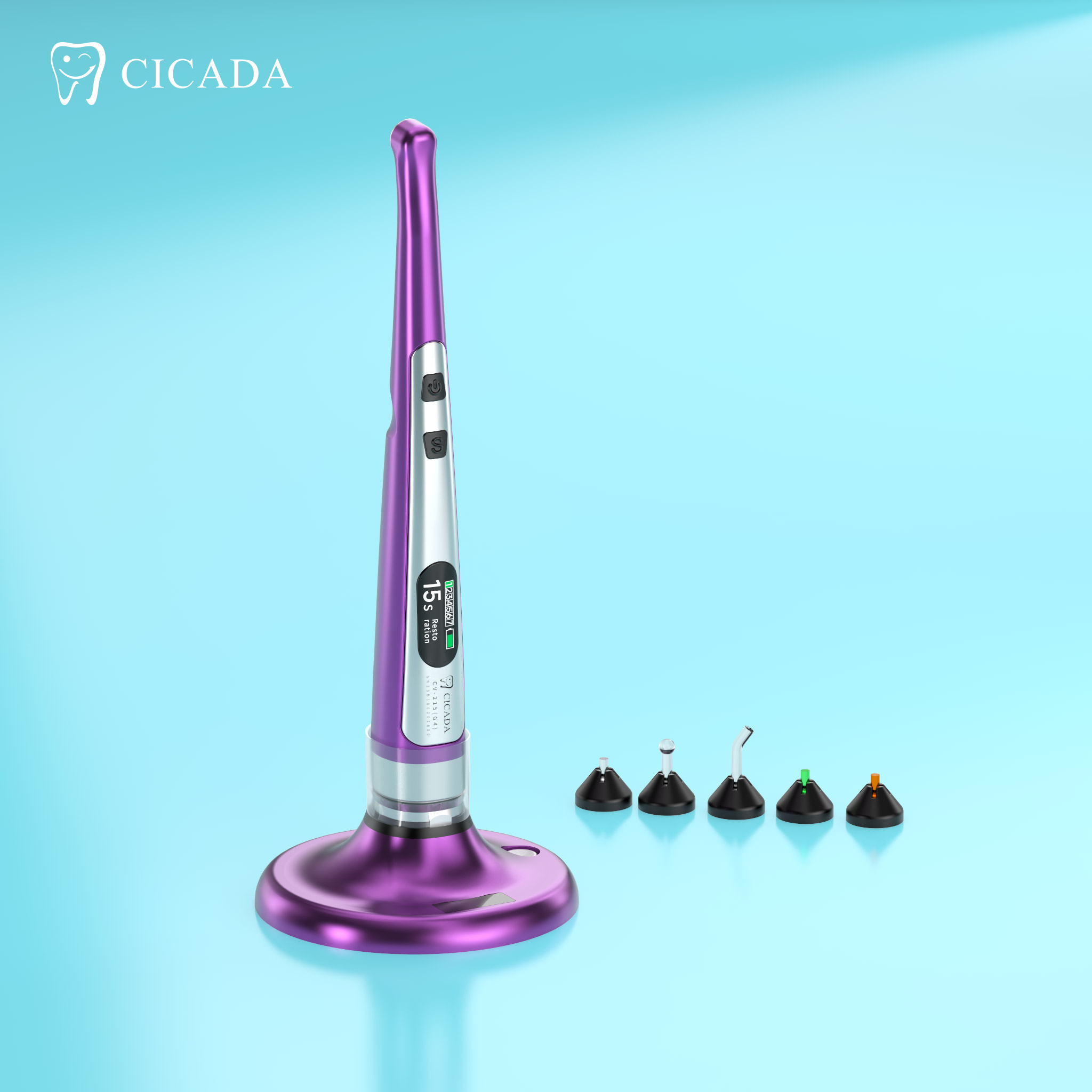

lens 5pcs

① Spot curing lens

② Near-cured ball lens

③ Root canal guiding lens

④ Check the diagnostic lens

⑤ Check the diagnostic lens
